GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath

Product Categories
Dongguan Mingtong Optoelectronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath

  • 1
  • 2

Brand Name : MingTong

Model Number : GYTS

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-3000RNB/KM

Payment Terms : L/C,T/T

Supply Ability : 200km/Day

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Waterblocking Material : Water Blocking Tape Or Filling Compound

Fiber Type : G657A1 Or A2, G652D

Strength Member : Steel Wire Or FRP

Sheath Material : PE

Highlight : Armored 24 Cores Outdoor Fiber Optic Cable, HDPE Sheath Outdoor Fiber Optic Cable, Steel Tape Armored Outdoor Fiber Optic Cable

Loose Tube Material : PBT Or Jelly

Fiber Core : 2-288 Core Loose Tube Optic Fiber Cable

Name : Outdoor Optical Cable

Contact Now

Steel Tape Armored 24 Cores Outdoor Fiber Optical Cable
With Black HDPE Sheath GYTS
GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath


This is GYTS Outdoor Aerial and Duct,24 Cores Fiber Optic Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

GYTS Outdoor Aerial and Duct 24 Cores Fiber Optic Cable are designed for easy and economical installation.



Cable Description from inside to outside
1. fiber

2. Steel-wire strengthen member

3. loose tube

4. filling compound

5. corrugated steel tape

6. out sheath


Application
1. Outdoor aerial or duct distribution.
2. Long distance and local area network communication.

Characteristics
1. Steel tape strengthen.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.
7. HDPE sheath.


Cable construction details
Item Description
Model No GYTS
1. Fiber count 12 24
2. Cable Diameter(MM) 8.8±0.2
3. Cable Weight(KG) 85
4. Central Strength member
-Material Steel wire
-Diameter 1.4mm
-PE sheath No
5. Loose Tube
-Material PBT
-Outer diameter 1.6 mm
-Thickness 0.3 mm
-Type of filling compound Jelly
-No. of loose tube 2 4
6. Filler
-Material PP
-Outer diameter 1.6 mm
-No. of fillers 3 1
7. Tube Assembly
-Tube Layout 1+5
-Stranding type SZ
8. Water-blocking system
-Material Filling compound
9. Core wrap
-Material polyester tape
10. Armour
-Material Steel tape
-Thickness 0.22mm
-Coating material Plastic
-Coating thickness 0.1mm
11. Outer Sheath
-Material PE
-Thickness 1.6mm±0.2mm
12. Sheath marking
-Type of marking Laser printing



GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath


Standard color of fiber and tube

GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- >=400 >=160 Bandwith
1300nm MHZ.KM ---- ---- >=800 >=500
Zero dispersion wavelength nm 1300-1324 >=1302,
≤1322		 ---- ---- >= 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr
≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm >= 1180,
≤1330		 >=1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)
---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10








Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01


Core dimater um

50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----


Our advantages

  • High- integrity enterprise ( 90% regular customers).
  • Hight quality with competitive price (A professional manufacturer).
  • Shortest delivery time
  • QC: ISO 9002, ROHS, UL, REACH.
  • MOQ is 1KM.
  • Exclusive testing laboratory
  • Free samples provided.
  • Customized.

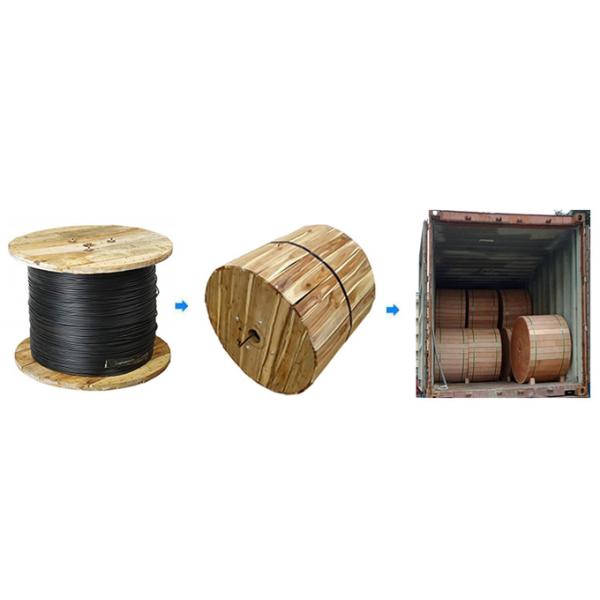

Package & Shipping & Payment

GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath

GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath
